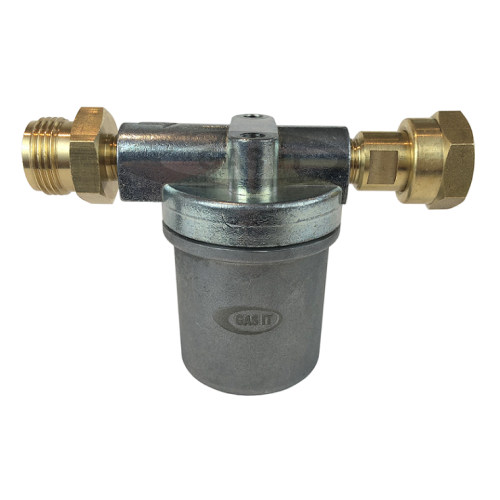

High Capacity Vapour Filter for Bulkhead Regulators (W20 Male in x W20 Female Out) - (GI-VF-009)

High Capacity Vapour Filter for Bulkhead Regulators (W20 Male in x W20 Female Out)
  • Click to enlarge

£60.95


Product CodeGI-VF-009
ManufacturerGAS IT
ConditionNew
Weight0.6Kg

NEW High Filtration, High Capacity and High Flow GAS IT vapour filter for fixing direct to your vehicle mounted regulator.

GAS IT has been selling our market leading vapour filters for LPG vapour applications for well over 25 years and our latest vapour filter development features a new higher capacity filter body which offers even high filtration via our unique glass fiber filter element.  It also offers significantly high flow rates for large gas bottle or tank installations and gas usage.

  • Easy of installation - Just fits between your pigtail and your bulkhead mounted gas regulator.
  • Filters the dirty, oily gas vapour before it hits your regulator and internal appliances.
  • Works with your normal brand of exchange gas bottles or your own self refillable gas bottles and gas tanks.
  • Works with any brand of bulkhead regulator - Truma, Clesse, Cavagna and more.
  • Easily serviced with cost effective replacement filters available from GAS IT ( Part number GI-ACCS-172)
  • High flow rate filter with reinforced metal provides secure filtering in all conditions.
  • Large, Pleated Surface area filter captures more contaminates with low risk of blockage.
  • We recommend you check your filter for oily contamination every 12 months and replace internal as needed ( We recommend every 12 months to be well protected )  or sooner if used in a none leisure or high gas usage application

           GAS IT High Capacity Filter specifications

  • Maximum Operating Pressure 30 bar.
  • Working Temperature -20°C to 120°C.
  • Air Permeability ( DIN 53887 )  205 l/m2s  ( Liters per Meter/Squared per Second )
  • Wire Mesh Reinforced Filter which will stand up to all types of dirt and abuse
  • Active Filtration Area of Filter. 140 cm2  ( Centimeter Squared )

This direct to gas regulator GAS IT vapour long body filter has been designed to fit directly to your bulkhead mounted gas regulator via the W20 pigtail fitting.  Once fitted you can then connect your existing W20 gas rubber pigtail to the filter and you will protect the regulator and everything down stream of it from dirty, oily LPG gas.

Should you have space issues above your bulkhead regulator, which will make mounting the GAS IT direct to regulator vapour filter hard, we do sell a simple to use W20 elbow which will allow the vapour filter to come out from the side of your regulator rather than stick on the top.  ( see options at section at the side of this GAS IT filter picture )

If you have 2 gas bottles you have 2 options with regards filtration.

1) To protect the Auto change over ( GAS IT Part number GI-REG-009 ) or our Semi Automatic tee (  GAS IT Part number GI-ACCS-076 ) plus the regulator then you will need to buy 2 of these GAS IT filters - one for each pigtail connection, so these 2 filters will filter gas leaving both bottles and stop the dirt and oils from entering the auto change over or semi automatic tee.

2) If you are only interested in protecting the regulator from dirt and oils and not the Auto change over device ( GAS IT Part number GI-REG-009 ) or Semi Automatic tee (  GAS IT Part number GI-ACCS-076 ) then you will only need to buy one GAS IT filter and fit it between the regulator and Auto Change over or Semi Automatic Tee piece.  Then both of your pigtails from each bottle will connect to the change over device, the filter will go after the change over device and onto the regulator.
