11kg Gen2 Gas Bottle & EASYFIT Fill System

11kg Gen2 Gas Bottle & EASYFIT Fill System
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge

5.0 average, based on 1 reviews

£223.24

Product Information
Specification

GAS IT Self Refillable gas bottle are easy to use, save you money and are super convenient to use and fill up

What makes the GAS IT refillable gas bottle system stand out above the rest.

1) Easy to install

2) Cheap to refill

3) Refill with ease anywhere using everyday Autogas - including Europe

4) No Lifting and carrying of exchange gas bottles.

5) No having to send back part filled exchange bottles, just incase you need more gas on the next trip.

6) Gas Level Indicator Options Available. This bottles comes with no gas level indicator as standard. You have the choice of selecting a clip on mechanical gas level indicator or the GAS IT Bluetooth gas level sender which will show you the gas level when fitted to the bottle. Please note : No mechanical gas level indicator, in any brand of gas bottle, can read from the very bottom to the very top of the gas level. For a more accurate and remote reading capability, from the top to the bottom of the bottle, we recommended the GAS IT Bluetooth Ultrasonic gas level sensor or you can in the future buy the Bluetooth sensor separately option and upgrade at a later date.

This GAS IT bottles come with the option to purchase a mechanical gas contents gauge or bluetooth sensor to show you what gas is left in the bottle and an 80% automatic shut off fill system making the refilling process childs play, also connecting a GAS IT bottle to your regulator is no harder than you using your normal exchange type gas bottle.

This GAS IT brand of 11kg Refillable gas bottle is designed to be refilled with cheap Autogas at any Autogas/ LPG station in the UK and Europe.  Autogas is normally sold several times cheaper than renting and exchange your normal show  brand of exchange gas bottles plus you have the luxury of being able to fill up when you want, and where you want. so you'll never run out of gas again.

GAS IT bottles and valve system are manufactured in Europe and are fitted with an automatic 80% shut off fill system, meaning you simply attach the Autogas pump to your vehicle mounted LPG fillpoint, and when the gas bottle is 80% full, it stops filling.

With GAS IT's proven refillable bottle meaning you can fill up when. and where you want.

The 2 connections - inlet and outlet, on the GAS IT bottle are the standard refillable elbow with LPG connection fitting identical to our other GAS IT bottles and GAS IT tanks, plus Gaslow, Alugas, Prakto and many more, meaning partnering them with your existing refillable bottle is possible.

Do you want to keep your existing exchange type bottle as a spare, or use it till you've used all the gas in it?  No problem.  Its easy to have any mixture of GAS IT self refillable bottles and exchange type gas bottles.

Here's the GAS IT technical bit.

The gas outlet on the manual tap of this GAS IT Bottle is the UK specification 109 nut (21.8 LH) thread which is known as the butane nut & fitting. If you have a large blue gas bottle currently you will be fine but if you have a red bottle Propane pigtail ( UK POL) fitted to your existing gas install, then you can either buy a separate new 21.8 LH pigtail or a pol to 21.8LH adaptor - both are available from ourselves at an small extra cost.

 These GAS IT Refillable products are regularly used in the Caravan, Motorhome, Road Repair, Catering and Farrier industries. Our GAS IT Technical team can advise you of all our GAS IT items functionality and regulation compatibility within your industry and use. We can even work with you on designing a GAS IT system unique to your needs.

This GAS IT 11kg Refillable gas bottle with Gas level contents gauge & Remote Easyfit fill system fillpoint kit is the easy install option as you don't need to modify the outside of your vehicle to  fit the remote fill system but you are still 100% complying with all EU and UK requirements to have a remote ( Off bottle) mounted fill point. This kit is a complete single bottle remote fill kit and the easy way to get onto the to the refillable bottle ladder.

It comes with a new GAS IT 11kg refillable bottle, Easyfit fill system  and GAS IT heavy duty angled bracket for the fillpoint, a 0.75 mtr Lightweight OEM specification fill hose ( fillpoint to bottle) and to finish it all off , you even get a cover for the fillpoint to stop any dirt entering the fill system.

Our GAS IT EASYFIT© fill system kit is unique in that it fully complies with all current  EU and UK regulations, unlike other makes of refillable bottles which use 'Direct on Bottle' mounted fill points.

Our GAS IT EASYFIT© fill system is not the same as our Fill point is NOT directly connected to the bottle ( it uses a fully approved Fill hose ) and we also include a covered on the fill point to stop any dirt contamination,  so that's why our GAS IT type of Easyfit fill system and mounting system is still OK for use in the UK, France and other EU countries where as others are not.

The only one extra item you might need to buy is either a new 21.8Lh Pigtail to connect to the gas outlet valve on our GAS IT bottle to your regulator or a Pol to Butane adaptor ( depending on what Regulator / pigtail you currently have )  Both items are listed on our webshop.

 If in the future you want to upgrade and add a 2nd ( or more ) GAS IT bottles, this can be simple done by buying our Add on kit and another GAS IT refillable.

These GAS IT Refillable products are regularly used in the Caravan, Motorhome, Road Repair, Catering and Farrier industries. Our GAS IT Technical team can advise you of all our GAS IT items functionality and regulation compatibility within your industry and use. We can even work with you on designing a GAS IT system unique to your needs.

This kit can also be partnered up with the identical Gaslow type so you are sure of absolute compatibility should you decide to have more than one bottle fitted. This bottle also works with the Gaslow, Caratank and GAS IT fillpoints, hoses, fitting and so forth.

The specification of each of these 11kg Gen2 refillable bottles are as follows :-

Fills to approximately 21 litres (at 80% full)

Dimensions with Shroud: 580mm height x 304mm diameter or Dimensions without Shroud fitted : 550mm height x 304mm diameter.

Empty Cylinder Weight with Shroud : 12.7 Kg approx ( Weight reduced once handle / shroud is removed )

Fill Inlet: 3/4" SAE Male Thread - Requires 21.8LH Pigtail or Gas Bottle Outlet Converter to UK POL ( Propane) adaptor - (GI-ACCS-024)

Fill Inlet: 3/4" SAE Male Thread

Material: Steel

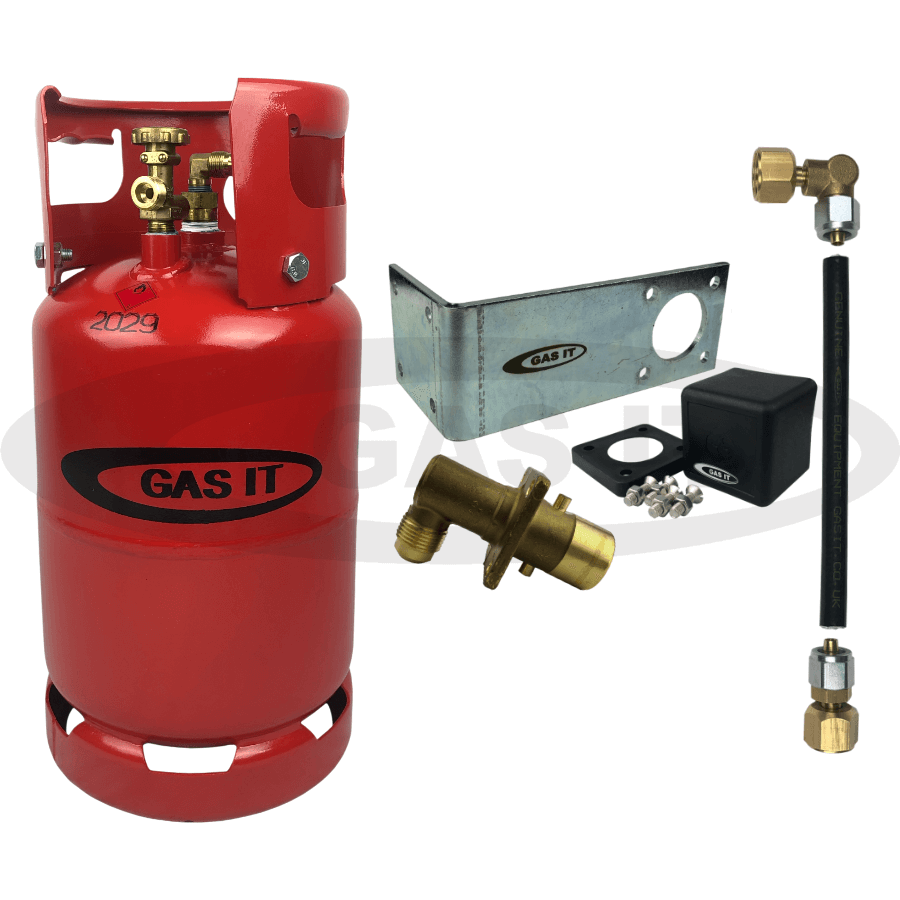

GAS IT Gen2 11kg bottle with EASYFIT fill system
Self-Assembly
Kit consists of:-
1 x VB-002-S  - 11kg Gen2 Bottle Shrouded
3 x AUX-024   - 3mtr Lightweight fill hose
1 x AUX-005  - 8mm to Thermoplastic
1 x AUX-030  - Str SAE/8mm fitting for lightweight fill hose
1 x FP-004   - Angled UK fill bayonet 8mm
1 x FP-009   - Angled mounting bracket
1 x FP-010   - Square dust cover kit c/w screws
1 x S002 Dragon Products Leak Detector Spray 400ml

 For assembly of the GAS IT OEM specification Lightweight fill hose we have full 'how to assemble instructions' here on the GAS IT knowledgebase - Click here to visit the knowledgebase section.





Product CodeGI-VB-002-S-EF
ManufacturerGAS IT
ConditionNew
Weight15kg
