Product Information

Comes with GAS IT's Latest Self Assembly Lightweight LPG Fill Hose System. The picture of the completely assembled fill hose is for illustration only - This is how the fill hose will look be after you have assembled the parts supplied in this kit.

It is very flexible, compact and very light weight yet fully complies with R67 regulations. It makes installing GAS IT bottles or gas tanks in confined spaces a very easy application and works very well in gas locker applications.

Not all Fillpoints systems are the same and with our GAS IT EASYFIT fill system you do not have to modify the outside of your vehicle.

Our GAS IT easy fit fill point kit is unique to our GAS IT Dealer in that it fully complies with EU and UK regulations. Our GAS IT EASYFIT Fill system is NOT directly connected to the bottle ( it uses a fully approved R67 Fill hose ) and we also include a covered on the fill point to stop any dirt contamination - In line with R67 regualtions needs, so that's why our GAS IT type of in easy fit point and mounting system is still OK for use in the UK, France and other EU countries where as others are not.

If you don't want to have to drill the body to fit a full body mount remote fillpoint for your gas bottle and make body modifications but you do want to fill anywhere and comply with all UK and EU regulations and advise notices from all the major LPG and HSE organisations when it comes to refilling gas bottles, then this is the parts kit you need for your approved refillable bottles from GAS IT, Gaslow and others ( NOT FOR USE WITH A SAFEFILL BOTTLE)

Our GAS IT ‘Easy fit’ Angled Bracket Remote filling system comes with all the parts you need to have a mounted fill point separate from the Gas bottle and which means you can fill at any LPG forecourt or gas station and comply with all regs.

It is a simple to fit item that needs no major tools or modification to your vehicle. It will work on any leisure or commercial vehicle or caravan.

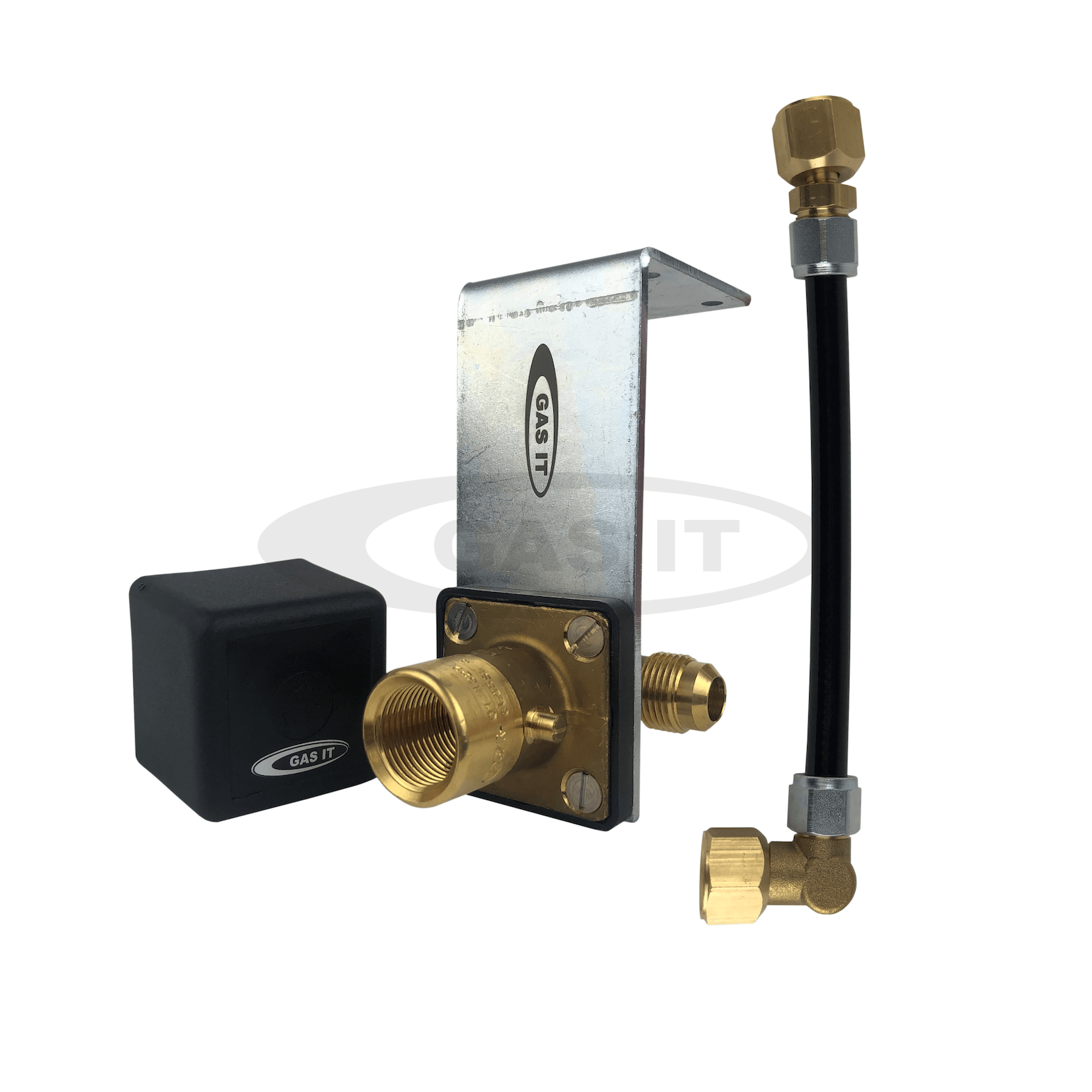

GAS IT angle remote EASYFIT fill kit for single bottle


Kit consists of:-

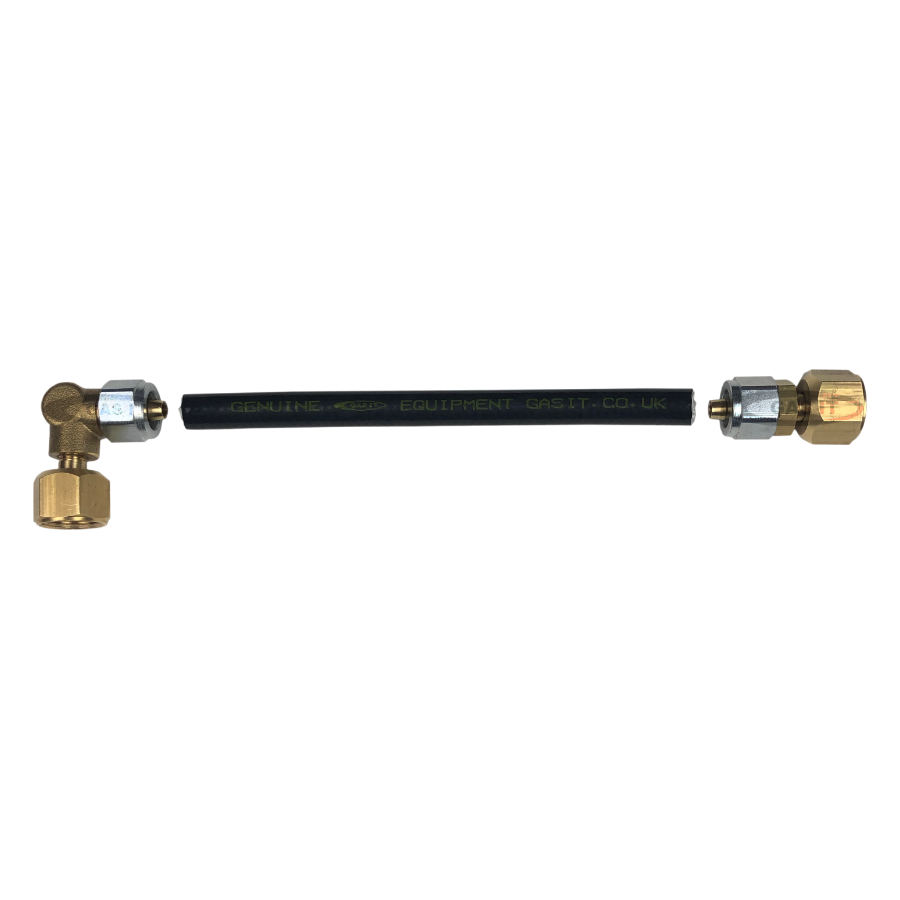

2.00mtrs x AUX-024 - Lightweight fill hose

2 x AUX-030  - Str SAE/8mm fitting for lightweight fill hose

1 x FP-002   - Angled UK fill bayonet

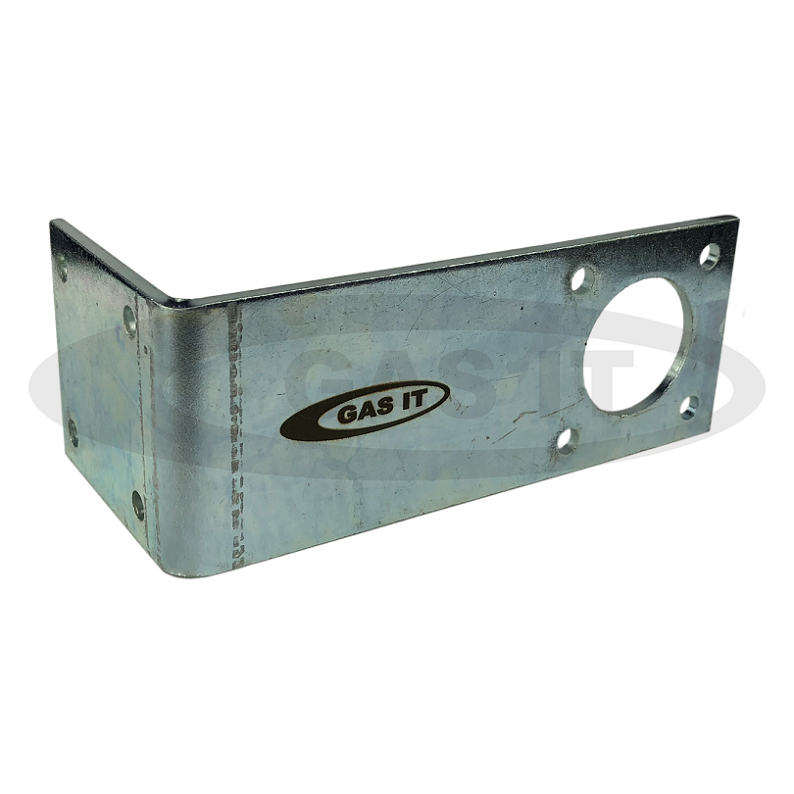

1 x FP-009   - Angled mounting bracket

1 x FP-010   - Square dust cover kit c/w screws

This GAS IT EASYFIT fill bracket kit will only work with the major brands of refillable Gas bottles that are designed for refilling and that are fitted with a separate 80% shut off valve and gas outlet. ( NOT Safefill who only have one valve in the tank and cannot be remotely refilled )

These R67 approved Lightweight LPG hoses come in very simple self assembly kit form and they only require very simple hand tools to assemble the ends on the hose. The reason for this is so you can make your own dedicated fill hose length up for your unique application. For example, you will receive a 0.75mtr fill and the 2 ends. On fitting you might find you only need a 0.45 mtr fill hose so with this self assembly hose you can cut the hose using a knife or pipe cutter and assemble it to be 100% specific for your application.  It also works out significantly cheaper than buying a hose that's pre made.

For full information on how this GAS IT part works and functions plus how to install it, please visit the GAS IT Online Knowledgebase and search for the part number or product description.


Any sales questions please do not hesitate to email or call our GAS IT Sales on or Telephone 01286 832443

Product CodeGI-FH-055
ManufacturerGAS IT
